Reliable Detection Microwave Blind Spot Monitoring System

FOB Reference Price:Get Latest Price
US $158-168 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Microwave Blins Spot detection System
Voltage:
9-24V
Power:
2.4W
Car Make:
Universal
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Viracle
Model Number:
BSM-01
Warranty:
24 Months
Product name:
Reliable Detection Microwave Blind Spot Monitoring System
Certificate:
CE E-mark ROHS ISO
View angle:
40 Degrees
Function:
Parking Assist
Detection accuracy:
<0.55km/h
Transmitting power:
15dBm
Waterproof:
IP 67
Detection distanc:
0-25m
Detection range:
0.55Km/h-220Km/h
Working tempera:
-40℃ ~ 85℃
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral white box or Customization package
Port
Shenzhen
Lead Time :
Within 5~7 working days after receipt the payment

Reliable Detection Microwave Blind Spot Monitoring System

BSD(Blind Spot Detection) System:BSD warn the driver against collisions that may occur due to a lane change manoeuvre. BSD are intended to supplement the vehicle’s interior and exterior rear-view mirrors. BSD are intended to detect vehicles to the rear and sides of the subject vehicle . When the subject vehicle driver indicates the desire to make a lane change, the system evaluates the situation and warns the driver if a lane change is not recommended. The system will not take any automatic action to prevent possible collisions. Responsibility for the safe operation of the vehicle remains with the driver.



Main Features

1.Valid only for Moving objects;

2.No need to drill holes on car bumper;

3.Detect objects getting close-by,which is real danger;

4.Far detection distance,so cam give warning earlier;

5.strong anti-interference:work perfectly under heavy rain,fog,snow.

Six Advantage

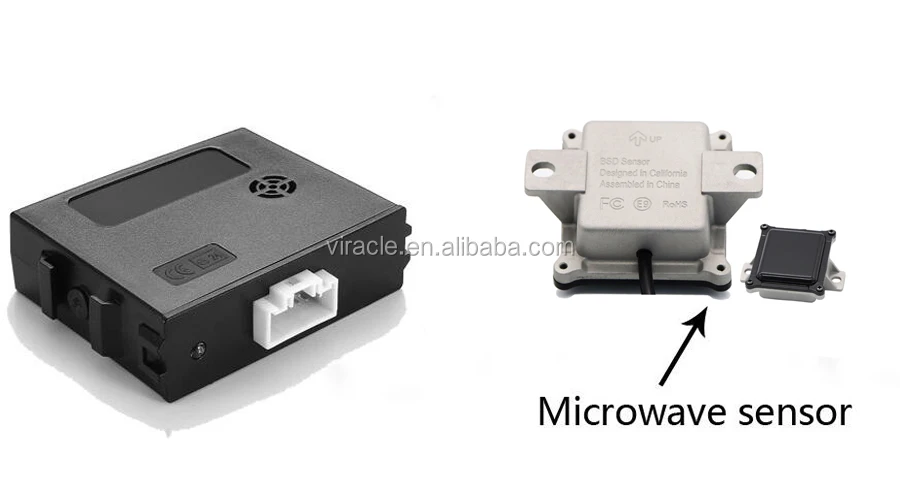

1.24 GHZ high performance microwave radar BSD sensor

2.Bigger detection range,3x15 meter big blind area from right and left side and behind

3.Accurate detection for only detect moving object,not for quiet stuff.

4.LED indicator+buzzer beep sounds,double assurance

5.No need to punch hole,no damaged to the cable,No injured to the car.

6.Can easy change lanes on the highway

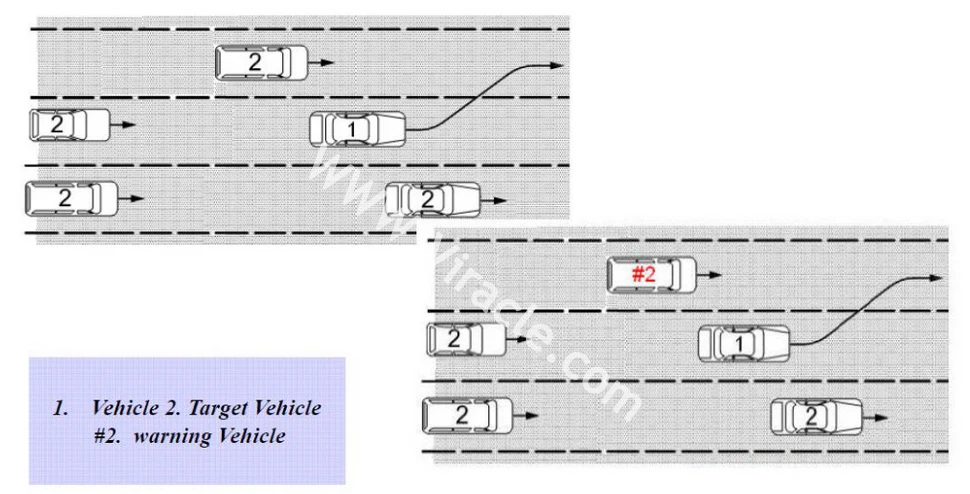

(1)Changing Lane Warning Function
a). When the vehicles will change lanes, the BSD system will detect at effectively region on the corresponding direction;
b). Through the BSD system would detect the target vehicle in the effective area 1 , the buzzer will alarm.







(2)Changing Lane Warning Function

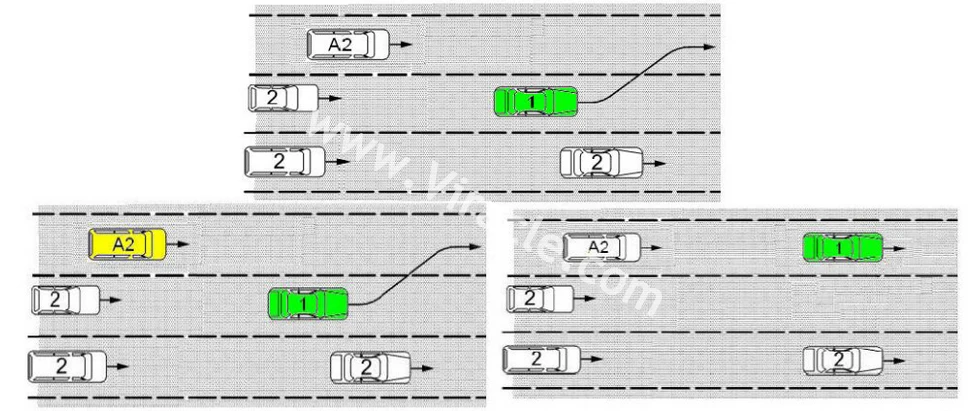

c). When vehicle 1 would change the current lane to the left lane(fig 1), the BSD system will judge whether the target vehicle 2 is in the area 3;
d). If the vehicle A2 will be in area 3, and it's relative speed is more than 10Km/h and close to vehicle1, the system will alarm;
e). If the vehicle A2 will not be in area 3, or it's relative speed is less than 10km/h, the system will not alarm.

7.All weather monitoring

Strong anti-interference:work perfectly under heavy rain,fog,snow.



Radar Sensor Layout Figure







Working Mode & Alarming Mode



(1)Working Mode:



1. System begin to work when car speed exceeds 30Km/h



2. When turning light is on, the corresponding sensor begin to work.



(2)Alarming Mode:



If there is object within 20 meters from the sensor, and getting closer to the sensor (faster then our car).





(3)Alarming thru:



1. Turning light OFF: corresponding LED light will be constantly ON.



2. Turning light ON: corresponding LED light flashes (sound optional).



3. Safe: No alarm.



Company Information





Our Services



  1. High quality:Less than 0.4% failure rate,all our products with CE ROHS approved.
  2. Long Warranty period:24 months Warranty period.
  3. Professional:All staff are all experienced in Auto Electronics line,most of them are with over 6 years experience.
  4. Focus:We highly focused on Car Blind Spot System product.So we can be more concentrate and ensure our professionalism.
  5. First calss after-sales services:for defective products for free together with your next order.
